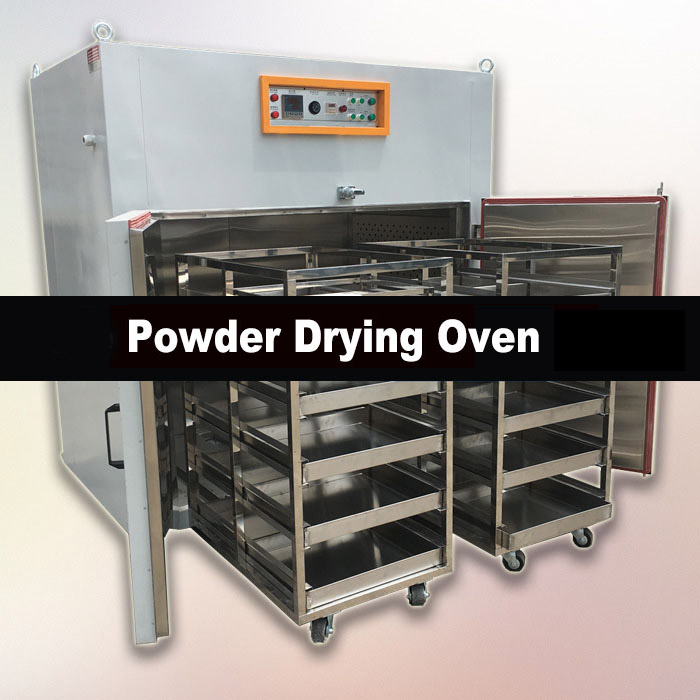

Powder Drying Oven
- Model: DHF
- Power Supply: 380V 3Ph 50Hz (Customizable)
- Application: Powder drying
- Working Temperature: RT+30°C to 200°C
- Control Accuracy: ± 1°C
- Heating: Electric heating
- Heating Control: SSR or SCR power controllers
- Temperature Control: Meter or PLC control
- Color: Customizable
Powder drying oven is heated chambers used for a variety of industrial applications. Recirculated air blower is provided to constantly circulate hot air in interior chamber, with high rate vertical or horizontal airflow, which offer excellent temperature uniformity.
▶ APPLICATIONS
- Powder drying
▶ FEATURES
- Durable tubular heating elements
- All welded construction
- Durable recirculating blower
- Adjustable exhaust outlet damper
- Durable trolley
- Insulated with alumina silicate fibre insulation
- 304 stainless steel interior and painted exterior
- Heavy duty doors
- Silicone door gasket
- Viewing window (optional)
▶ AIRFLOW PATTERNS
- Comnination (horizontal & vertical up) air flow
▶ CONTROL
- Digital temperature controller
- SSR or SCR power controllers
- Heat ON/OFF switch
- High volume recirculation blower
- Timer with range up to 0 to 999 hours/minutes/seconds
- Audible and visible alarm indicators
- Control Accuracy: ±1°C
- Uniformity: ±5°C
- Available input power supply to your specifications
- Temperature recorder (optional)
- PLC with HMI(touch panel) (optional)
- Programmable temperature controllers (optional)
▶ SAFETY PROTECTION
- Separate excess temperature interlock to turn off heat on malfunction of main temperature controller
- Electrical interlock shuts off heat if recirculating blower is broken
▶ SPECIFICATIONS
| Model | Internal Dimensions(WXDXH mm) | Outside Dimensions(WXDXH mm) | Volume | Heat | Blower | Max Temp |
|---|---|---|---|---|---|---|
| DHF8810 | 800 × 800 × 1000 | 1170 × 1000 × 1580 | 640L | 9KW | 750W | 200℃ |
| DHF81010 | 800 × 1000 × 1000 | 1170 × 1200 × 1580 | 800L | 12KW | 750W | 200℃ |
| DHF101212 | 1000 × 1200 ×1200 | 1370 × 1400 × 1780 | 1440L | 16KW | 1100W | 200℃ |
| DHF101215 | 1000 × 1200 × 1500 | 1370 × 1400 × 2080 | 1800L | 21KW | 750W*2 | 200℃ |
| DHF121518 | 1200 × 1500 × 1800 | 1570 × 1700 × 2380 | 3240L | 24KW | 750W*4 | 200℃ |
| DHF151820 | 1500 × 1800 × 2000 | 1870 × 2000 × 2580 | 5400L | 48KW | 1100W*4 | 200℃ |
| DHF182020 | 1800 × 2000 × 2000 | 2170 × 2200 × 2580 | 7200L | 60KW | 1100W*4 | 200℃ |
| DHF202520 | 2000 ×2500 × 2000 | 2370 × 2700 × 2580 | 10000L | 80KW | 2200W*4 | 200℃ |
Notes: For more models, please contact us. The unit could be entirely bespoke, we can design and tailor ovens to your specification.
