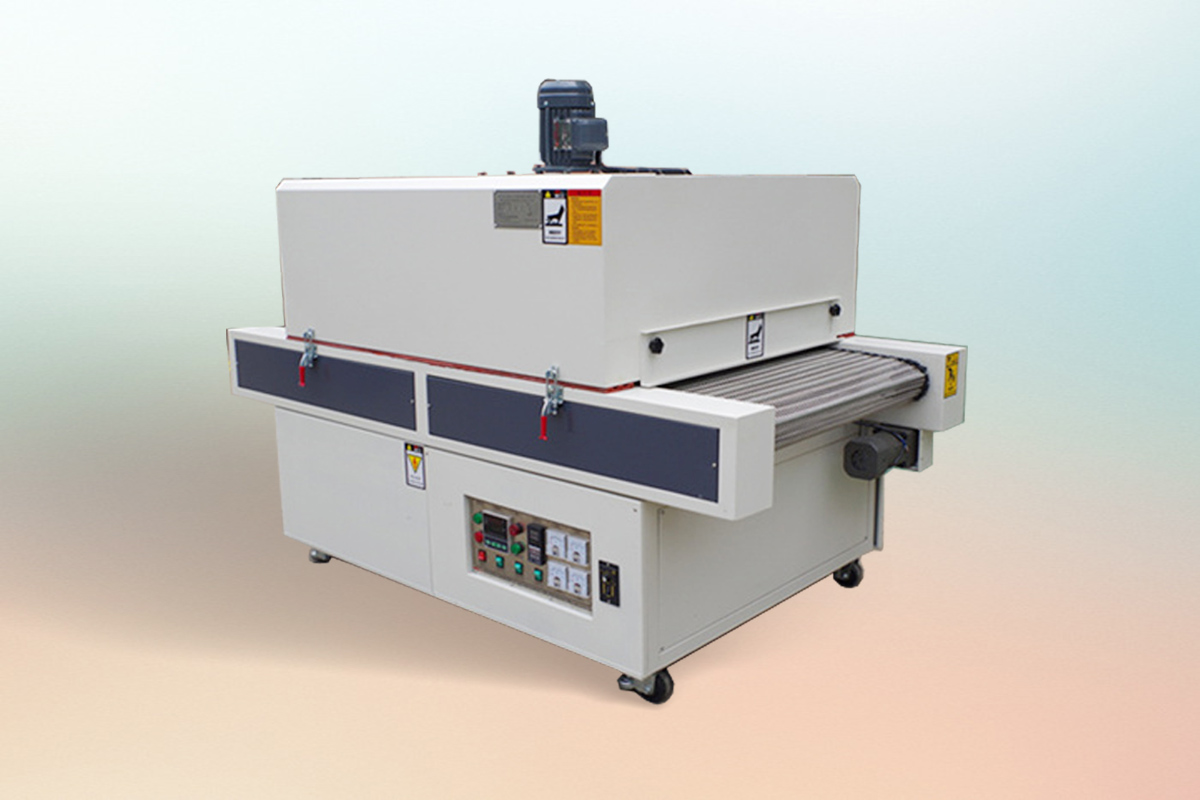

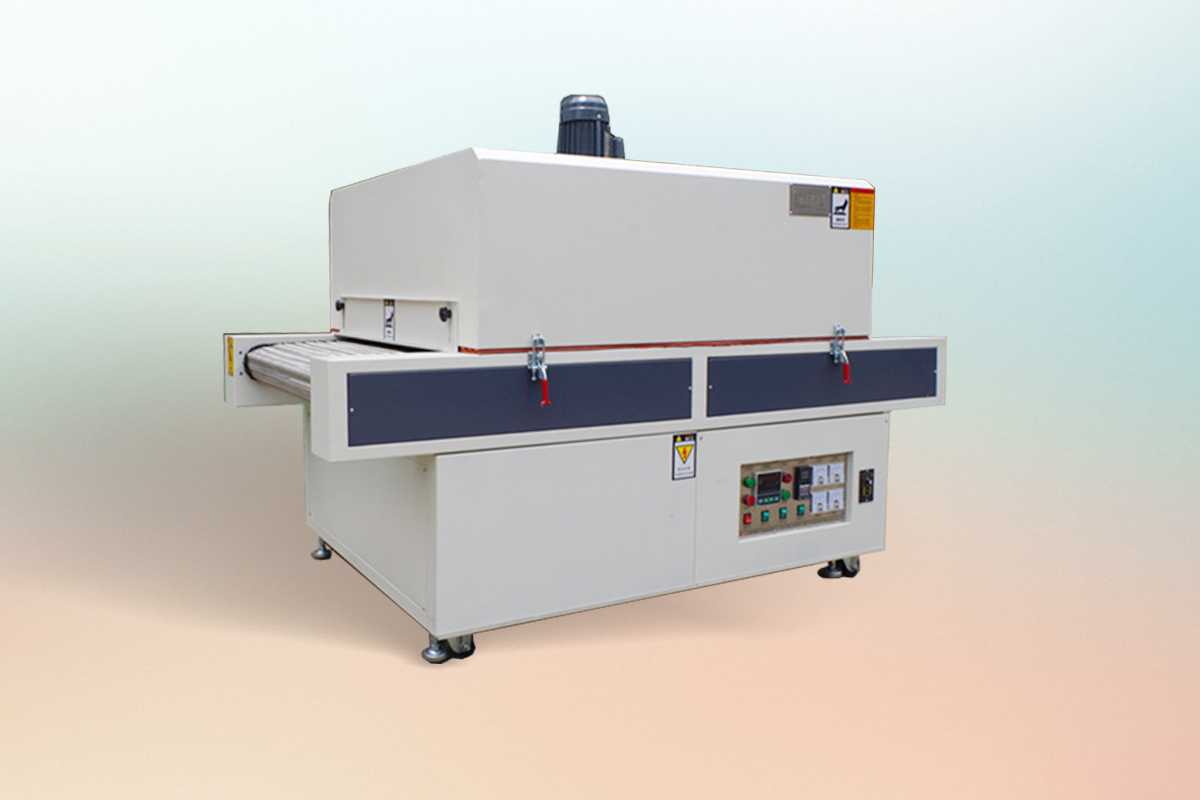

Tunnel Oven
- Model: DHF
- Power Supply: 380V 3Ph 50Hz (Customizable)
- Application: Powder drying
- Working Temperature: RT+30°C to 200°C
- Control Accuracy: ± 1°C
- Heating: Electric heating
- Heating Control: SSR or SCR power controllers
- Temperature Control: Meter or PLC control
- Color: Customizable
Tunnel oven is a continuous industrial baking system designed for high-volume production. It features a elongated chamber divided into multiple temperature-controlled zones, allowing precise regulation of heat, airflow, and humidity during the baking process. Products are transported through these zones on a conveyor belt, ensuring uniform baking and optimal efficiency.
▶ APPLICATIONS
- Baking
- Curing
- Drying
▶ FEATURES
- Durable tubular heating elements
- All welded construction
- Durable recirculating blower
- Adjustable exhaust outlet damper
- Durable belt
- Insulated with alumina silicate fibre insulation
- 304 stainless steel interior and painted exterior
▶ AIRFLOW PATTERNS
- Comnination (horizontal & vertical up) air flow
▶ CONTROL
- Digital temperature controller
- SSR or SCR power controllers
- Heat ON/OFF switch
- High volume recirculation blower
- Timer with range up to 0 to 999 hours/minutes/seconds
- Audible and visible alarm indicators
- Control Accuracy: ±1°C
- Uniformity: ±5°C
- Available input power supply to your specifications
- Temperature recorder (optional)
- PLC with HMI(touch panel) (optional)
- Programmable temperature controllers (optional)
▶ SAFETY PROTECTION
- Separate excess temperature interlock to turn off heat on malfunction of main temperature controller
- Electrical interlock shuts off heat if recirculating blower is broken
